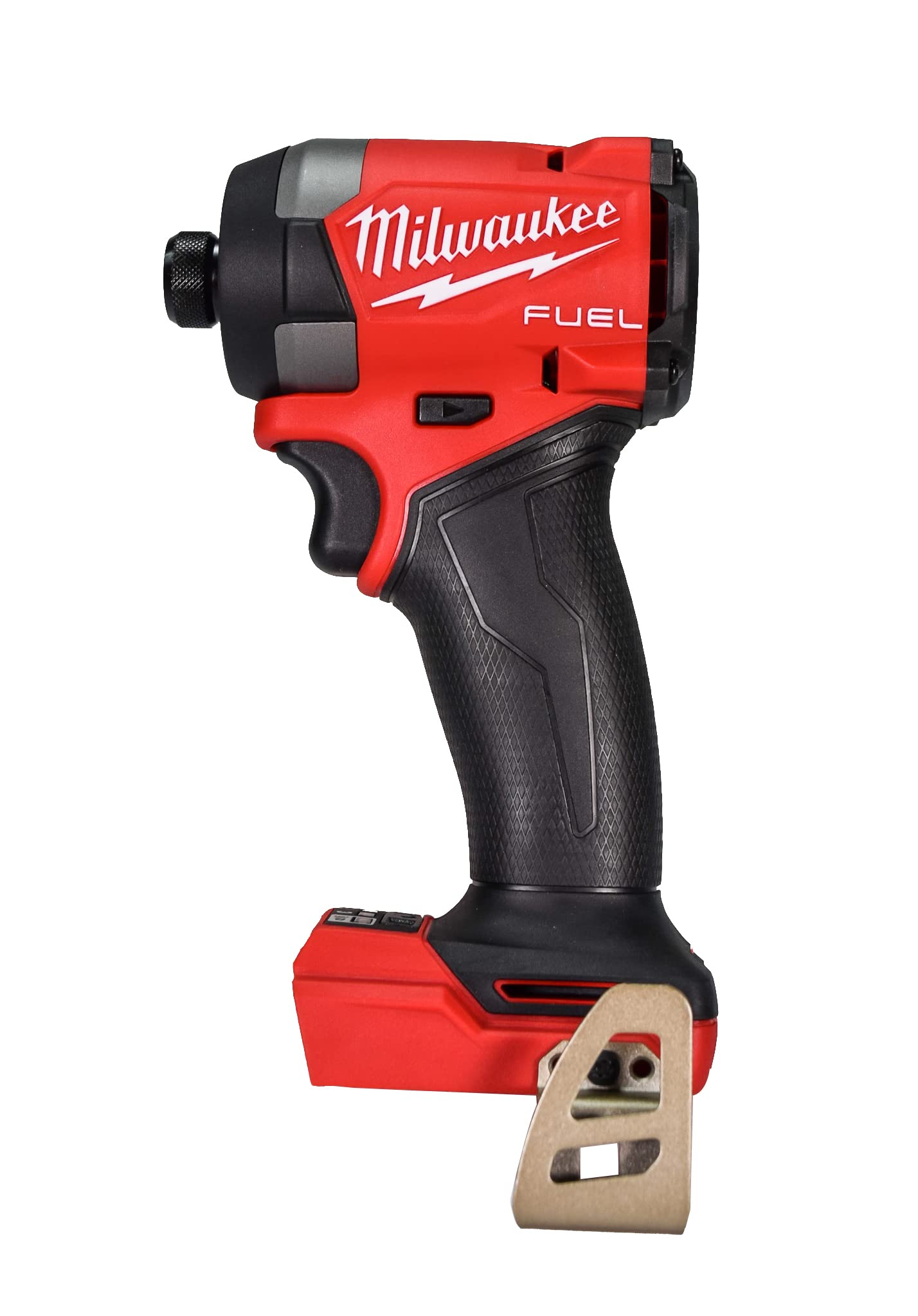

The Milwaukee M18 Fuel Impact Driver 2953-20 represents the fourth-generation upgrade with enhanced speed and impact rate, delivering 3900 RPM and 4400 IPM while maintaining the same 2000 in-lbs of torque. It features a more compact design at 4.47 inches, a tri-beam LED light ring for better visibility, and one-hand bit insertion. While performance remains strong, reviewers noted that the trigger system lacks spring assistance and torque remains unchanged from the Gen 3 model. This tool is ideal for professionals seeking reliable, high-performance impact driver capabilities in a compact form factor.
Full review
Speed and impact performance
The Milwaukee M18 FUEL Impact Driver 2953-20 delivers enhanced speed and impact performance over its predecessor. Testing revealed that it operates at a maximum speed of 3,900 RPM, up from 3,000 RPM in earlier models, while the impact rate increased from 3,400 IPM to 4,400 IPM. These improvements contribute to faster completion of tasks such as driving lag screws and breaking loose nuts.
Performance testing also showed the driver's ability to maintain high speeds even under load. During a test where the tool drove 6-inch x 1/4-inch GRK Fasteners RSS screws into stacked OSB subfloor, the average time was 8.6 seconds. This performance places it among the fastest tools tested, with the Milwaukee M18 Fuel 2953-20 completing the task significantly faster than many competitors in the same category. The tool's brushless motor and REDLINK PLUS intelligence contribute to consistent acceleration, minimizing the risk of screw stripping or material damage during operation.
Torque and breaking capacity
The Milwaukee M18 FUEL Impact Driver 2953-20 maintains a consistent torque output of 2,000 in-lbs, which is sufficient for most professional applications including driving large lag bolts and self-tapping screws. This level of torque ensures that users can confidently tackle heavy-duty fastening tasks without worrying about tool limitations.
In a specific test involving 150 ft-lbs nuts, the driver required an average of 4.2 seconds to break them loose, which is notably faster than many competing models. The tool's ability to maintain consistent torque output under load, combined with its powerful motor, makes it a reliable choice for professionals who require both power and precision. The inclusion of four drive modes allows users to adjust the power level according to the task at hand, providing versatility for different types of fasteners and materials.
Compact design and ergonomic features
The Milwaukee M18 FUEL Impact Driver 2953-20 achieves a compact profile measuring just 4.47 inches in length, making it one of the smallest impact drivers in its class. This design allows for better access in tight spaces such as cabinet installations or HVAC ductwork, where maneuverability is crucial. The tool's weight remains consistent at 2.2 pounds when bare, with a 5.0Ah battery bringing the total weight to 3.8 pounds. Users can reduce weight by opting for smaller capacity batteries like the 2.0Ah or 3.0Ah High Output batteries.
Ergonomic features include a one-hand bit insertion system that simplifies the process of changing bits. The tool's collet design allows for quick bit changes without needing to remove the collet, streamlining workflow. Additionally, the Tri-LED lighting system provides illumination around the hex quick-change chuck, eliminating shadows and improving visibility in poorly lit areas. This lighting setup is particularly beneficial for users working in confined spaces or during low-light conditions.
Trigger system and control modes
The trigger system of the Milwaukee M18 FUEL Impact Driver 2953-20 has been upgraded to provide smoother acceleration and better control over screw starts. This enhancement allows users to adjust the power delivery more precisely, reducing the risk of overdriving or stripping screws. The tool includes four drive control modes: three standard modes for varying levels of power and a self-tapping screw mode designed to minimize walking and overdriving. The self-tapping screw mode is particularly useful for driving screws into materials like drywall where precision is essential.
Users can select the appropriate mode based on the task requirements, with Mode 1 offering the lowest power for delicate work, Mode 2 providing moderate power for general applications, Mode 3 delivering higher power for tough jobs, and Mode 4 providing maximum power for heavy-duty fastening. This flexibility ensures that users can optimize performance for different materials and fasteners, enhancing both efficiency and accuracy. The trigger system's responsiveness has been praised by users for its ability to provide consistent acceleration and maintain control during operation.
Battery compatibility and power management
The Milwaukee M18 FUEL Impact Driver 2953-20 is compatible with all Milwaukee M18 batteries, including the 5.0Ah RedLithium battery pack which was used in performance testing. The tool's REDLINK PLUS intelligence provides protection against overheating, over-discharge, and overload conditions, ensuring reliable operation under demanding circumstances. Battery performance during testing showed that the tool maintained consistent power output throughout extended use, with minimal degradation in performance even when operating at full capacity.
The battery management system effectively monitors power consumption and adjusts performance accordingly. Users reported that the tool's battery life was sufficient for extended work sessions, with the 5.0Ah battery providing adequate runtime for most professional applications. The tool's compatibility with various Milwaukee M18 battery types allows users to choose the appropriate capacity based on their specific needs, whether for shorter tasks or longer work periods. The inclusion of a rubber boot and all-metal belt clip further enhances the tool's durability and portability.
Durability and build quality
The Milwaukee M18 FUEL Impact Driver 2953-20 is built to withstand heavy-duty use in demanding environments. The tool's construction includes a brushless motor and REDLINK PLUS overload protection, which contribute to its longevity and reliability. Users have reported that the tool continues to function well even after being dropped during framing jobs or exposed to harsh conditions. The robust design ensures that the tool maintains its performance characteristics over time, even with frequent use.
The tool's components are designed to resist wear and tear, with features such as a durable housing and secure battery connection. The inclusion of a belt clip and bit holder enhances portability and accessibility, making it easier for professionals to carry and use the tool on job sites. The tool's build quality has been consistently praised by users who appreciate its ability to maintain performance under stress, making it a reliable choice for demanding applications.
Lighting and visibility features
The Milwaukee M18 FUEL Impact Driver 2953-20 features a Tri-LED lighting system that surrounds the hex quick-change chuck, providing better illumination than traditional single-light designs. This lighting setup effectively eliminates shadows and improves visibility in poorly lit areas, which is particularly useful for tasks performed in confined spaces or during low-light conditions. The LED system has been noted to provide sufficient illumination for most applications, allowing users to work more accurately and efficiently.
The lighting system's design allows for clear visibility of the work area without the need for additional lighting sources. Users have reported that the Tri-LED system significantly improves their ability to see fasteners and work surfaces, especially in tight spaces where traditional lighting might be inadequate. This feature has been particularly appreciated by professionals working in areas with limited natural light or where additional illumination is not feasible.
User experience and workflow efficiency
Users have consistently praised the Milwaukee M18 FUEL Impact Driver 2953-20 for its ease of use and workflow efficiency. The tool's compact design, combined with its quick bit insertion system and improved trigger control, allows for faster task completion and reduced fatigue during extended use. The ability to switch between drive modes provides flexibility for different applications, while the tool's consistent performance ensures reliable operation throughout the workday.
Professional users have noted that the tool's performance in real-world applications matches its laboratory testing results. The tool's ability to handle various materials and fasteners without requiring frequent adjustments or modifications has been highlighted as a significant advantage. The inclusion of features like the belt clip and bit holder enhances portability and accessibility, making it easier for users to carry and deploy the tool on job sites. Overall, the Milwaukee M18 FUEL Impact Driver 2953-20 offers a balance of power, precision, and convenience that appeals to both professional users and DIY enthusiasts.
Strengths
- +4th generation upgrade delivers 300 RPM faster maximum speed at 3900 RPM
- +Increased impact rate from 3400 to 4400 IPM for improved performance
- +Compact design at 4.47 inches with no change in weight at 2.2 pounds
- +Tri-Beam LED light ring around collet provides better illumination
- +One-hand bit insertion simplifies operation without needing to remove collet
Watch-outs
- −No significant torque increase from previous model (2000 in-lbs)
- −lowest power setting may not be delicate enough for some projects
How it compares
The Milwaukee M18 FUEL Impact Driver 2953-20 stands out with its 300 RPM speed increase and 4400 IPM impact rate, making it faster than the DEWALT DCF860 and Makita XDT19, though it maintains the same 2000 in-lbs torque as its predecessor. Unlike the Milwaukee 2853-22 XC Kit, it offers a more compact design and tri-beam LED lighting, but lacks the higher torque of the discontinued model. Compared to the Ryobi PBLID04, it has a more consistent performance profile without the trigger responsiveness issues noted in the Ryobi model.
