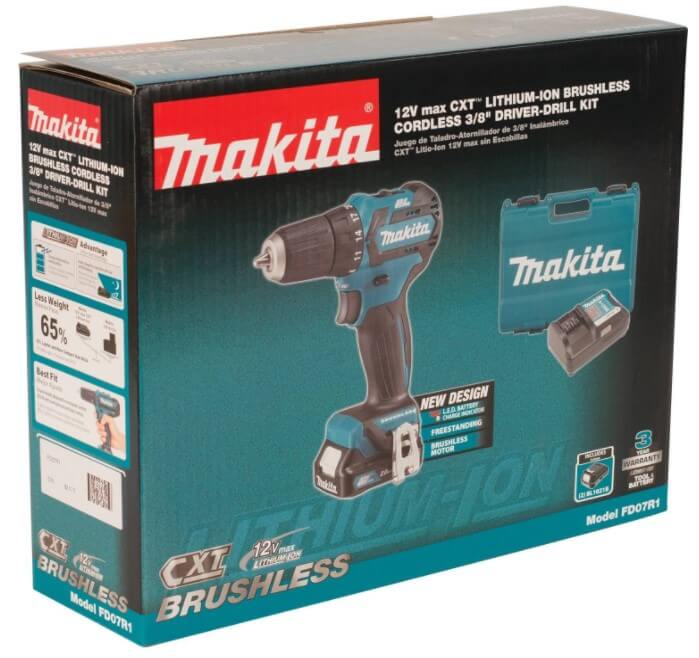

The Makita FD07R1 is a 12V max EXT brushless driver-drill kit designed for compact use and extended runtime. Consumer Reports and tool reviewers praised its brushless motor efficiency and ergonomic design, noting it's well-balanced and comfortable for extended use. The tool's compact size and slide-style battery with LED indicator add convenience, though it sits mid-pack in terms of weight and torque compared to other models in its category. It's ideal for users who value portability and efficiency over maximum power.
Full review
Compact design with ergonomic grip
The Makita FD07R1 features a traditional cordless drill design but with notable compact dimensions. The tool measures just 6-1/16 inches in length and weighs 2.33 pounds with the battery included. This makes it one of the more compact 12-volt models on the market, with the short length particularly beneficial for accessing tight spaces. The tool's weight is under 2 pounds when measured without battery, placing it in third position among lighter 12-volt drills tested. The handle design prioritizes comfort and balance, with a well-designed ergonomic grip that allows for extended use without fatigue. Reviewers noted that the tool fits nicely in the hand and remains well-balanced during operation, which is particularly valuable for tasks requiring sustained use.
Brushless motor efficiency and runtime
The FD07R1 incorporates a brushless motor that delivers improved efficiency compared to brushed alternatives. During testing, it demonstrated the ability to drive more 2-inch drywall screws than other drills using a compact 2.0 amp-hour battery, with 326 screws driven compared to 317 in a competing model. When evaluating true efficiency based on watt-hours, the Makita achieved 14.8 screws per watt-hour, which ranked it highest among tested 12-volt drills. This efficiency is attributed to the brushless motor's design, which reduces energy loss and improves overall performance. The motor's electronic control system adjusts torque and RPM to match changing demands, optimizing performance for different tasks. The tool's runtime was considered solid, particularly when using the 2.0 amp-hour battery, though performance may vary depending on the specific application and workload.
Torque and speed specifications
The FD07R1 delivers 280 inch-pounds of maximum torque, which is sufficient for most 12-volt applications including driving screws into hardwood and drilling holes with spade bits. The tool operates at two speed settings with a high speed of 0-450 RPM and a low speed of 0-1,500 RPM. This dual-speed capability allows for versatile use across different materials and tasks. Reviewers noted that while the tool's speed is high enough to be relevant, it does not exceed expectations in terms of peak performance. The torque output, however, was considered solid and adequate for demanding applications. The clutch system offers 20 settings plus a drilling mode, providing precise control over the driving process and preventing over-tightening or damage to materials.
Battery design and power management
The FD07R1 utilizes a slide-style lithium-ion battery pack that allows the tool to stand upright when not in use, a feature that reviewers found convenient. The battery is a 2.0 amp-hour model, though users can upgrade to a 4.0 amp-hour version for extended runtime. The battery includes an onboard fuel status gauge with four LED lights that activate when a button is pressed, providing users with a clear indication of remaining charge. This feature addresses a common user request for better battery monitoring. The battery also incorporates built-in protection systems against overloading, over-discharging, and overheating. These safety features contribute to the tool's reliability and longevity, with reviewers noting that the battery management system performs well under typical usage conditions.
Performance in practical applications
In practical use scenarios, the FD07R1 demonstrated its suitability for light to medium-duty drilling and driving tasks. Reviewers found it particularly effective for repetitive work in tight spaces where its compact size and lightweight design provide distinct advantages. The tool's ability to drive 3 screws into hardwood without difficulty was noted as a key strength. The LED light positioned above the trigger provides adequate illumination for working in dimly lit areas, though some reviewers mentioned it only remains illuminated for about 15 seconds after activation. The tool's performance in residential and light commercial applications was considered satisfactory, with users appreciating its balance between portability and power. The ergonomic design and comfortable grip were consistently praised, with reviewers noting that it outperforms many 18-volt drills in terms of user comfort during extended use.
Build quality and durability considerations
The FD07R1 features a robust build quality that supports its intended applications. The metal jaws and construction materials contribute to its durability, with reviewers noting that it can withstand regular use without showing signs of wear. The tool's components are designed to work effectively with the slide-style battery system, which also contributes to overall stability and performance. The inclusion of a 3-year warranty suggests confidence in the tool's longevity. However, some reviewers noted that the tool's compact nature may limit its performance in heavy-duty applications where more power is required. The brushless motor design contributes to longer tool life, though users should be aware that the 12-volt power output may not match the capabilities of larger 18-volt models for demanding tasks.
User experience and comfort features
User comfort was a standout feature of the FD07R1, with reviewers consistently praising the tool's ergonomic design and grip. The over-molded grip provides excellent handling during extended use, and the well-balanced construction reduces fatigue. The tool's ability to be easily handled by one hand was noted as a significant advantage, particularly for tasks requiring precision and control. The LED light, while not continuously illuminated, provides useful illumination when needed. The tool's compact size and lightweight design make it suitable for users who may experience hand fatigue during prolonged work sessions. Reviewers also appreciated the slide-style battery design, which allows the tool to stand independently and provides easy access to the battery for charging or replacement. The tool's overall feel and balance were described as superior to many competing models in its class.
Strengths
- +Brushless motor for increased efficiency, longer runtime, and extended tool life
- +Compact design with short length from tip to tail for tight space access
- +Ergonomically designed handle with rubberized soft grip for superior comfort
- +Includes slide-style lithium-ion battery that stands on its own with LED charge level indicator
Watch-outs
- −Weight of 2.33 pounds may be heavier than some competitors in its class
- −Max torque of 280 inch-pounds is mid-range compared to higher-end models
How it compares
The Makita FD07R1 offers superior ergonomics and a brushless motor compared to the Milwaukee 3403-22 and DeWalt DCD701F2, but it's heavier and has less torque. Unlike the Skil Pwrcore, it lacks a hybrid chuck and USB charging, but it's more durable and efficient. Compared to the Milwaukee M12 Fuel model, it's less powerful but more affordable and ergonomic.
Rating sources
“This drill offers everything an 18V drills offers, but in a lighter and smaller size. Makita designed an incredible drill around a compact brushless motor.”
Our 3.9 score is the average of the 2 scored reviews above; 2 more reviewed it without printing a score and are not in the average. Ratings marked * were derived from the reviewer’s written analysis or video transcript — the publisher didn’t print an explicit numeric score, so we inferred one from their own words. Click through to verify. More about methodology.
