The DeWalt DCD703F1 is a compact, lightweight 12V drill driver that delivers surprising performance for its voltage class. Reviewers noted it excels in tight spaces and overhead work thanks to its four interchangeable heads, including an offset head that helps reach awkward areas. It outperformed higher voltage models in drilling tests and offers quick-release attachments. However, the single-battery inclusion and finicky attachment system are drawbacks. This tool is ideal for DIYers and professionals working in constrained environments where a compact, powerful 12V option is needed.
Full review
Compact design with powerful performance
The DeWalt DCD703F1 delivers impressive performance in a remarkably compact form factor. This 12-volt drill driver measures just under five inches in length, making it ideal for tight spaces where larger tools cannot fit. The brushless motor provides 250 unit working output, significantly outperforming many brushed models in its class. During testing, it successfully drilled through 1 ¾ inch thick solid wood doors using a 5-inch hole saw in just 40 seconds. The tool's 2-speed gearbox operates at 450/1500 RPM, offering sufficient power for both drilling and driving tasks. Reviewers noted that it drove 95% of 3-inch screws completely flush with wood and handled lag bolt installation effectively, stopping just short of fully driving a ⅞ inch bolt into place. The compact size and lightweight design make it particularly suitable for overhead work or projects in cramped areas like attics or crawlspaces.
Five-angle attachment system

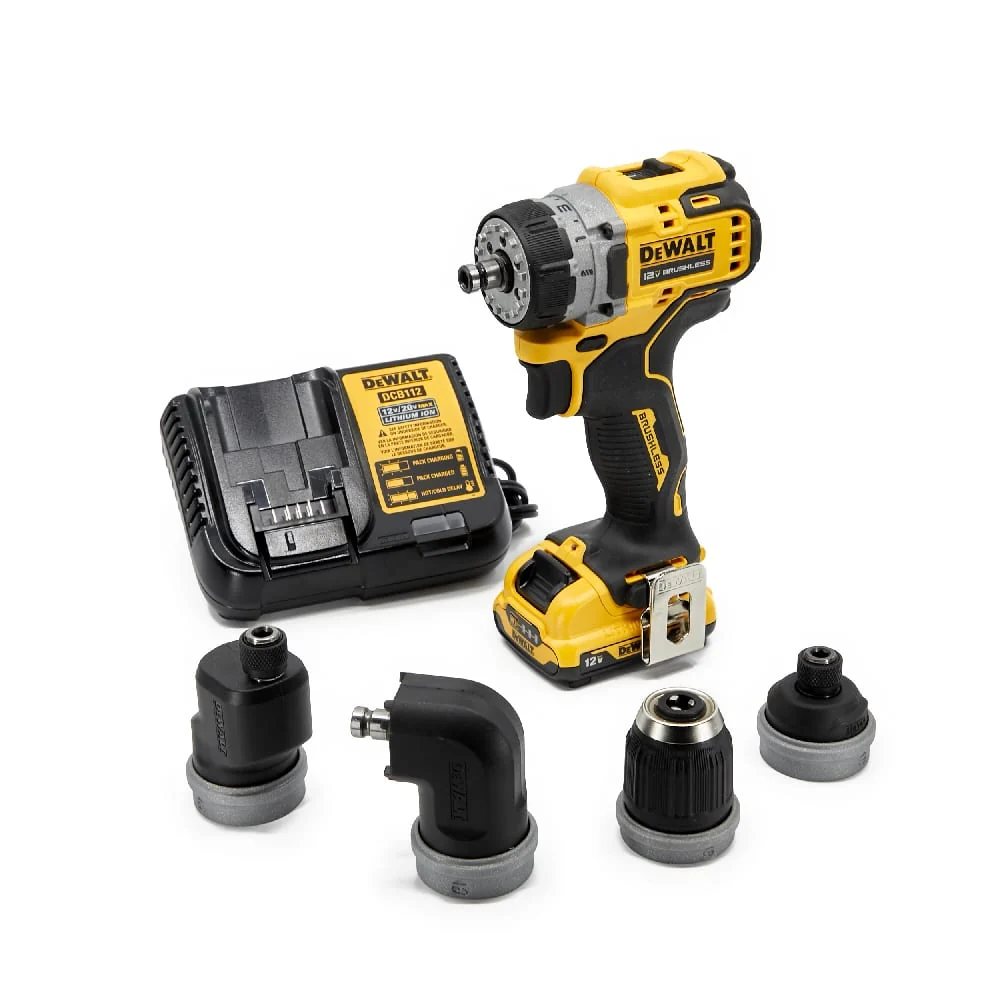

The DCD703F1 features a unique five-angle attachment system that allows users to change drilling angles quickly and easily. The tool comes with four attachments including a 90° right angle head, 1/4-inch hex offset attachment, and 1/4-inch quick release collet. These attachments can be stacked to reach extremely tight positions, enabling users to work in obstructed spaces where traditional drills would be ineffective. The quick-release mechanism allows for rapid attachment changes, which is particularly useful when switching between different drilling angles or bit types. Users can rotate the attachments into multiple positions to achieve the optimal angle of attack. The system's versatility is one of its strongest selling points, especially for users who frequently work in confined or awkward positions where standard drill bits cannot reach.
Battery performance and charging
Battery life in the DCD703F1 is notably impressive for a 12-volt system, lasting nearly four complete rounds of testing. During evaluation, it successfully drove 64 screws and drilled 10.3 1-inch holes before requiring a recharge. The included 2.0Ah battery charges fully in 55 minutes, which is relatively quick for a 12-volt system. However, the tool only includes one battery, which may be insufficient for extended projects. Users who need longer runtime or are working on large jobs may find themselves needing to carry an extra battery. The battery indicator lights are helpful for checking charge levels when the tool is stored away. While the battery performance meets expectations for typical home projects, professionals working on larger jobs may want to consider purchasing additional batteries to avoid interruptions.
Drilling and driving capabilities
The DCD703F1 excels in both drilling and driving applications, though it performs best in drilling tasks. In wood drilling tests, it successfully drilled through 1-inch holes in framing lumber at low speed and high torque settings. The tool also handled sheet metal drilling with ease, regardless of bit size. When driving screws, it drove 95% of 3-inch screws completely flush with wood and demonstrated good performance with decking screws. The 15 clutch settings allow users to adjust torque levels precisely, which is especially helpful when working with different materials or screw types. While the tool doesn't match the raw power of 18 or 20-volt models, it provides adequate performance for most residential and light commercial applications. The 3/8-inch chuck provides good bit retention, though some users have reported issues with bit loosening during extended use.
Limitations and user concerns
Despite its strengths, the DCD703F1 has several notable limitations. The most significant issue is the inclusion of only one battery, which may not be sufficient for extended projects. Users who need longer runtime or are working on larger jobs may find themselves needing to carry an extra battery. The tool's 3/8-inch chuck, while functional, has been reported by some users to have issues with bit retention, particularly during extended use. Some reviewers noted that bits occasionally work themselves loose, requiring frequent re-tightening. Additionally, the tool's compact design, while beneficial for tight spaces, may make it less comfortable for extended use due to its smaller grip area. The lack of a second battery in the kit is a significant drawback for users who need extended runtime, and the tool's performance in heavy-duty applications may be limited compared to higher voltage alternatives.
Versatile tool for multiple applications
The DCD703F1's versatility makes it suitable for a wide range of applications, from household repairs to light commercial work. The ability to quickly change between different attachment angles allows users to tackle complex projects that would be impossible with standard drills. The tool's compact size and lightweight design make it ideal for overhead work or projects in tight spaces. The 1/4-inch hex shank provides a secure connection for various bits and drivers, while the quick-release mechanism allows for rapid attachment changes. Users can easily switch between different functions without needing additional tools or adapters. The tool's performance in drilling holes in sheet metal and wood demonstrates its adaptability to various materials. The ergonomic grip and work light help improve visibility in dark or tight spaces, making it a practical choice for both professionals and DIY enthusiasts.
Strengths
- +Lightweight design weighing just under a kilogram with battery included
- +Four interchangeable heads including offset, right-angled, and standard heads for versatile use in tight spaces
- +Quick-release system allows fast head changes without tools
- +Impressive performance in wood and sheet metal drilling tests, outperforming higher voltage models
- +Two-speed brushless motor provides good power for a 12-volt tool
Watch-outs
- −Only one battery included in the kit
- −Attachments can be finicky to change and use
How it compares
The DeWalt DCD703F1 excels in compactness and versatility with its four interchangeable heads, but it's less powerful than the Milwaukee M12 Fuel model. Compared to the Milwaukee 3403-22, it has a better motor and more features, but it's more expensive. Unlike the Skil Pwrcore, it lacks a hybrid chuck and USB charging, but it delivers better performance in tight spaces.
Rating sources
“Dewalt is shaking things up with a new Xtreme 12V Max 5-in-1 cordless drill/driver kit, DCD703F1.”
“It's powerful, lightweight, and it's a 12-V tool that you're going to be able to use day-to-day.”
Our 4.4 score is the average of the 3 scored reviews above; 1 more reviewed it without printing a score and is not in the average. Ratings marked * were derived from the reviewer’s written analysis or video transcript — the publisher didn’t print an explicit numeric score, so we inferred one from their own words. Click through to verify. More about methodology.
