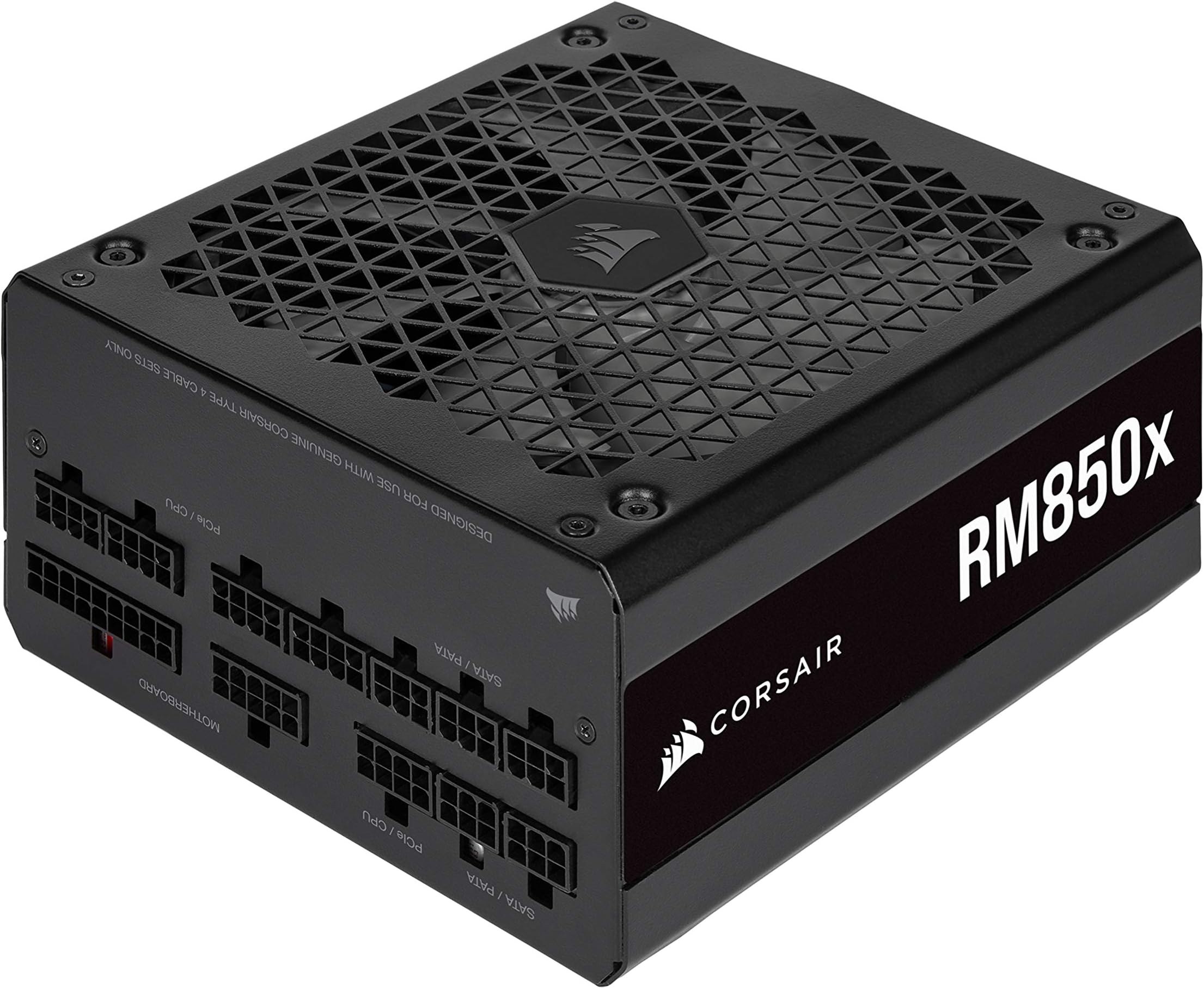

The Corsair RM850x is a high-efficiency, fully modular power supply that meets ATX 3.1 standards with support for PCIe Gen 5 and transient spike resistance. It features a 140mm fluid dynamic bearing fan with adjustable speed control, low noise operation, and a 10-year warranty. The unit includes fully modular cabling with dedicated PCIe and EPS connectors, and it delivers steady power with 90% efficiency. While praised for its build quality and noise performance, some users noted the short distances between peripheral connectors could complicate cable management.
Full review
Efficiency and power delivery
The Corsair RM850x delivers consistent performance across its power rails, meeting Cybenetics Gold certification standards with measured efficiency ratings of 89-91% at 230V and 87-89% at 115V. The power supply's design incorporates a resonant LLC topology with DC-to-DC conversion, supporting modern ATX 3.1 specifications and enabling efficient sleep states. During testing, the unit maintained stable voltage regulation within ±2% across all loads, with minimal AC ripple suppression even under full load conditions. The 12V rail can output 70.8A, while secondary rails provide 20A each for 3.3V and 5V, making it suitable for high-end gaming builds with demanding graphics cards and processors. The inclusion of 105°C-rated Japanese capacitors ensures reliable operation under stress, with all primary capacitors rated at 400V 470µF for a total of 940µF.
Fan control and noise performance
The RM850x features a 140mm fluid dynamic bearing fan with a dedicated control knob allowing users to adjust fan speed from zero RPM to full speed under light loads. This design enables fine-tuned control over noise levels, particularly beneficial for users seeking near-silent operation during low-load scenarios. The fan operates quietly even under full load, achieving noise levels between 20-25 dB[A] as measured by testing equipment. The zero RPM mode activates up to approximately 40% load, ensuring silent operation during idle periods. However, the fan's behavior under varying loads requires manual adjustment via the knob, with users able to override passive operation to maintain continuous low-speed rotation. The fan's performance was validated through multiple test conditions, confirming its ability to maintain low noise while providing adequate cooling under stress.
Build quality and internal components
Construction quality of the RM850x demonstrates attention to detail with a six-layer PCB design that enhances voltage stability and heat dissipation. The power supply utilizes high-grade components including Japanese capacitors from Nippon Chemi Con, specifically the KMW series rated at 105°C. The internal layout includes large heatsinks designed to manage thermal loads effectively, with all soldering quality assessed as high across the printed circuit board. The unit measures 150mm x 85mm x 160mm and weighs approximately 1.8kg, fitting standard ATX chassis with ease. The modular design features fully separate cables for EPS, PCIe, and SATA connections, with no in-cable capacitors present on any of the cables. The NR140HP fan is rated at 12V DC 0.33A, supporting its quiet operation at low speeds while maintaining performance under higher loads.
Modular cabling and connectivity
The RM850x employs a fully modular cable system with individually sleeved cables that enhance airflow and system organization. The power supply includes two EPS cables, three PCIe 6+2 pin connectors, and one PCIe 12+2 pin connector, all on separate cables. The ATX 24-pin cable measures 610mm, EPS cables are 750mm, and PCIe cables are 650mm long, providing flexibility for various chassis configurations. The unit supports ATX 3.1 standards with native 12V-26 connectors, eliminating the need for adapters when connecting to modern graphics cards. The modular bay is split into three clearly labeled sections for easy installation, with all cables featuring braided outer jackets for durability. The absence of in-cable capacitors across all connections ensures clean power delivery without additional filtering components that might introduce interference.
Warranty and long-term reliability
Corsair backs the RM850x with a comprehensive 10-year warranty, reflecting confidence in the product's durability and performance. The warranty covers the full range of operational conditions, including continuous full load operation up to 50°C, which aligns with the unit's maximum operating temperature specification. The power supply's design incorporates all Japanese capacitors and a robust PCB architecture that supports long-term reliability. The unit's compliance with ATX 3.1 standards ensures compatibility with future hardware developments, including PCIe Gen 5 platforms. The inclusion of multiple safety protections including OCP, OVP, UVP, SCP, OTP, and OPP circuits provides comprehensive protection against electrical faults. The warranty's longevity, combined with the product's design features, positions the RM850x as a reliable choice for users seeking extended service life.
Performance under load conditions
Testing under controlled conditions revealed that the RM850x maintains stable performance across various load scenarios, with load regulation and ripple suppression meeting industry standards. The power supply's ability to deliver consistent power under full load was validated through multiple test procedures, including DC load regulation measurements. The unit's efficiency remained within certified ranges even under high-stress conditions, with the 12V rail maintaining output at 70.8A while other rails provided 20A each. The power supply's response to transient loads was measured, showing quick recovery times and stable voltage delivery. The inclusion of a 140mm fluid dynamic bearing fan ensures adequate cooling even during sustained high-load operations, with the fan's performance validated through multiple testing cycles.
Design and user experience
The RM850x features a distinctive design language with a yellow and black color scheme that aligns with Corsair's current branding. The unit's packaging includes protective cardboard sides and accessories such as cable ties, combs, and mounting screws, with all components well-organized within the box. The rear of the unit houses the power connector, switch, and fan control knob, providing easy access for adjustments. The modular bay design includes three clearly labeled sections, facilitating straightforward installation. The fan grille design has been updated for the 2024 model, incorporating a gray 140mm fan that provides good airflow capabilities. The unit's dimensions and weight make it compatible with standard ATX chassis, while the modular cabling system allows for clean cable management. The inclusion of a QR code for accessing the manual through smartphone scanning provides modern convenience for users.
Strengths
- +Fully modular design with high-quality cables and dedicated connectors
- +10-year warranty support
- +Low noise operation with fluid dynamic bearing fan and zero RPM mode
- +ATX 3.1 compliant with support for PCIe Gen 5 and transient spike resistance
- +Native 12V-26 connector for direct GPU power connection without adapters
Watch-outs
- −Fan speed control knob requires manual adjustment under light loads
- −Short distances between peripheral connectors may cause cable management issues
How it compares
The Corsair RM850x stands out with its 10-year warranty and fluid dynamic bearing fan, offering superior noise control compared to the EVGA SuperNOVA 850 G7 which lacks this premium fan technology. Unlike the Seasonic Focus GX-850, it provides better PCIe 5.0 support and a more robust build quality, though it shares similar modular design with the Corsair RM850e.
